  1. The black wire labeled Duet GND from the 6 slot Wago connector attaches to the first GND on the Duet. The red wire labeled Duet 24v from the 3 slot Wago connector attaches to the first VIN terminal on the Duet.
    • The black wire labeled Duet GND from the 6 slot Wago connector attaches to the first GND on the Duet.

    • The red wire labeled Duet 24v from the 3 slot Wago connector attaches to the first VIN terminal on the Duet.

  2. The ring terminals coming from the bed should attach to the remaining terminals (OUT 0).
    • The ring terminals coming from the bed should attach to the remaining terminals (OUT 0).

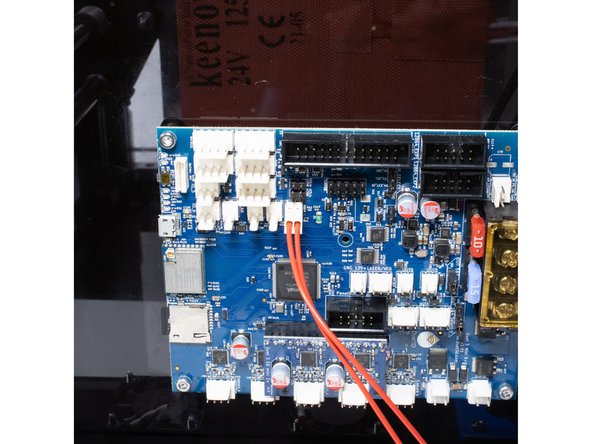

  3. The bed thermistor connects to Temp 0.
    • The bed thermistor connects to Temp 0.

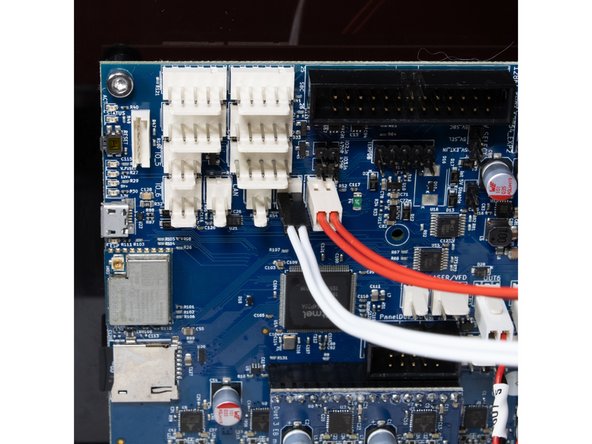

  4. The hotend thermistor plugs into temp1 .
    • The hotend thermistor plugs into temp1 .

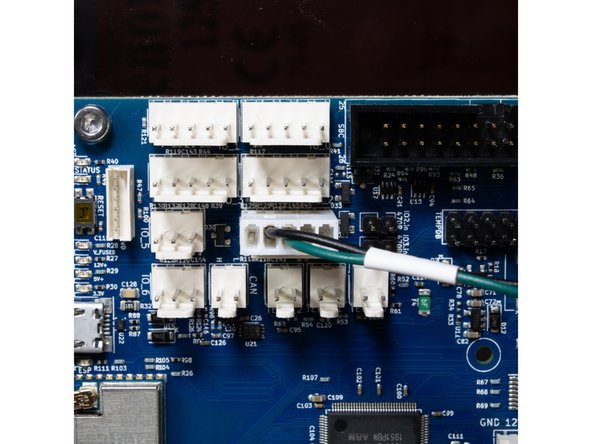

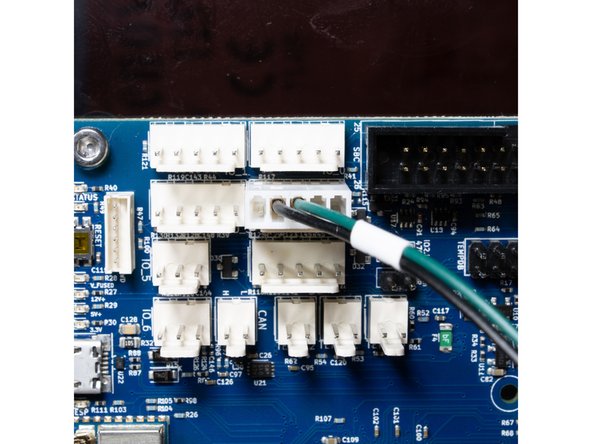

  5. Wire the X endstop to io.2. Wire the Y endstop to io.4.
    • Wire the X endstop to io.2.

    • Wire the Y endstop to io.4.

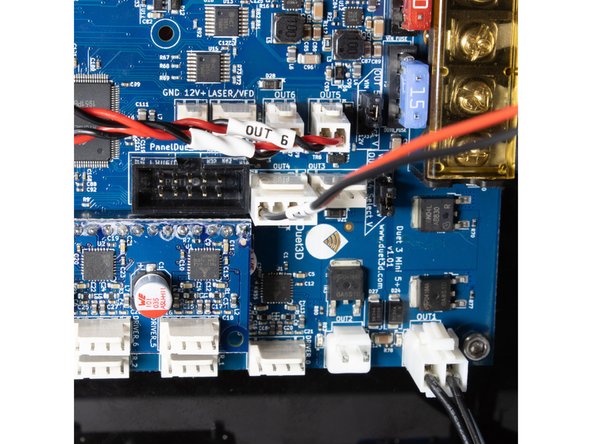

  6. Wire the layer fan to out4. Panel fans are wired to out5. Hotend fan is wired to out6.
    • Wire the layer fan to out4.

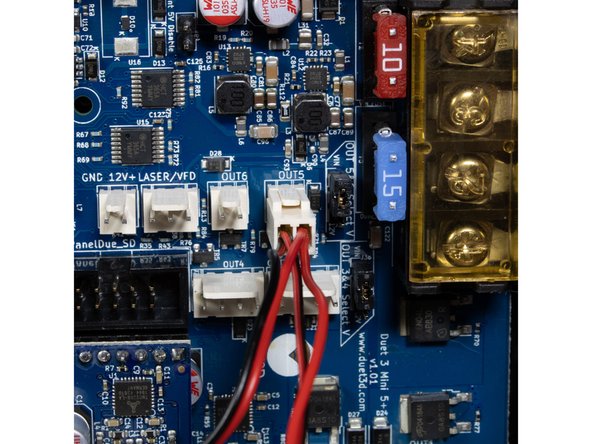

    • Panel fans are wired to out5.

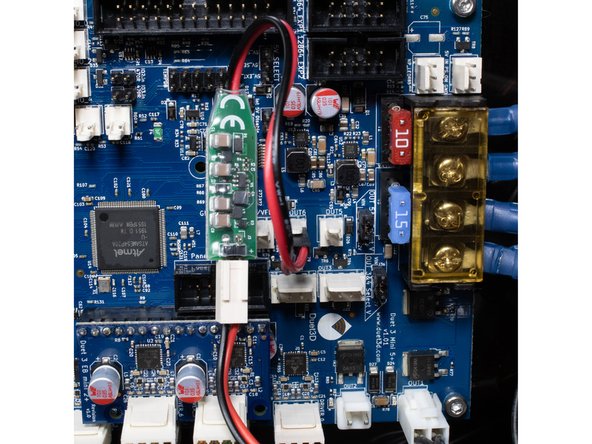

    • Hotend fan is wired to out6.

    • If you are using the E3D Revo Micro, your hotend fan must use the included 24v -> 5v buck converter.

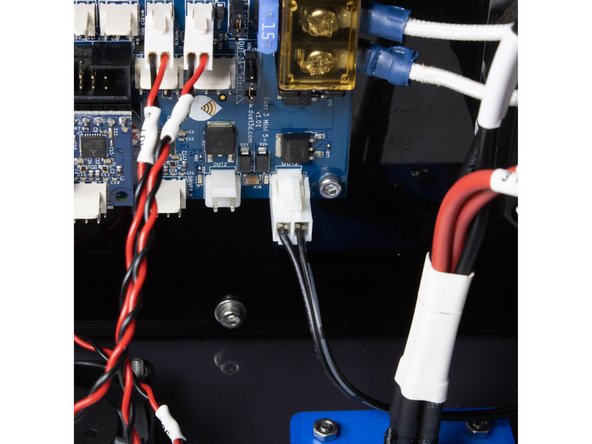

  7. The hotend heater is wired to out1.
    • The hotend heater is wired to out1.

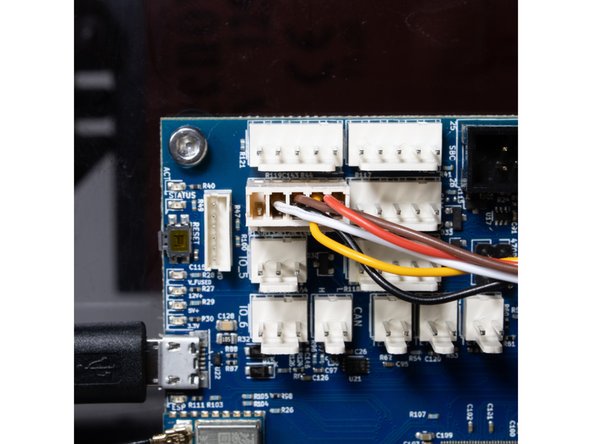

  8. The BLTouch is wired to io3.
    • The BLTouch is wired to io3.

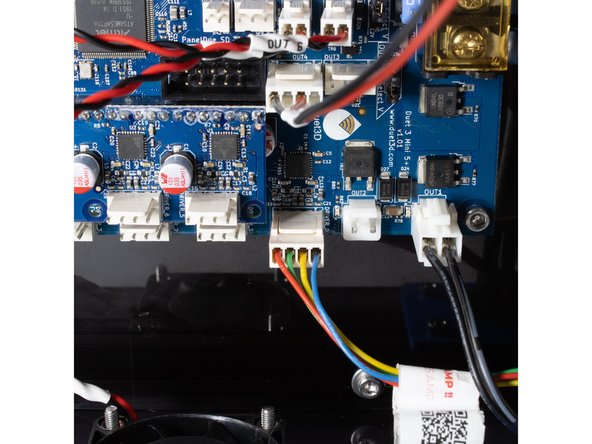

  9. The extruder is wired to Drive 0.
    • The extruder is wired to Drive 0.

  10. Front right Z stepper is wired to Drive 2. Rear right Z stepper is wired to Drive 3. Left Z stepper is wired to Drive 4.

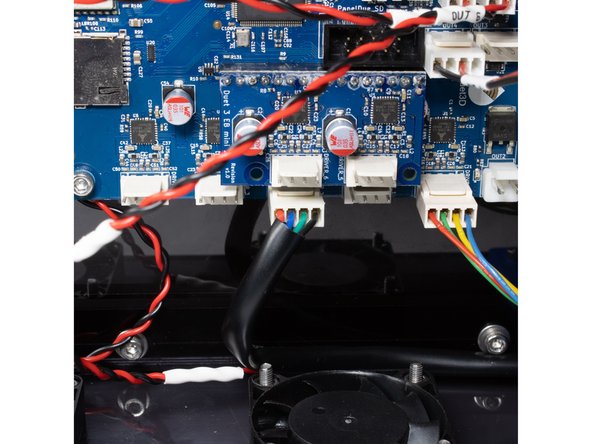

    • Front right Z stepper is wired to Drive 2.

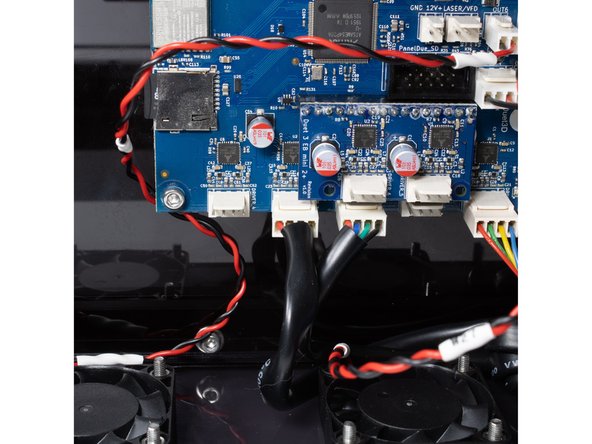

    • Rear right Z stepper is wired to Drive 3.

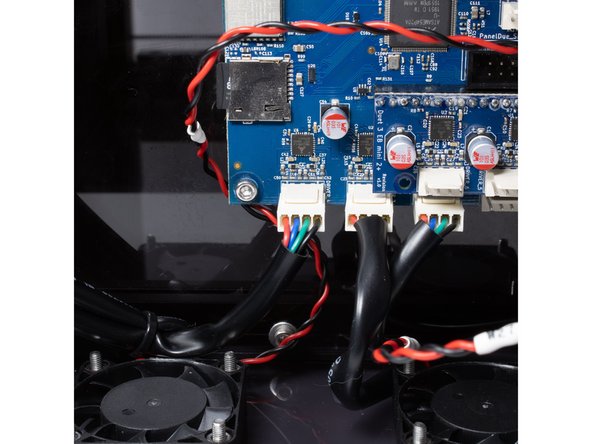

    • Left Z stepper is wired to Drive 4.

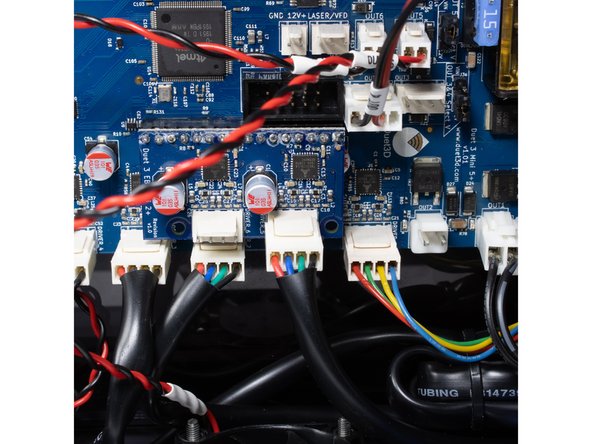

  11. X stepper (front) is wired to Drive 5 on the expansion board.
    • X stepper (front) is wired to Drive 5 on the expansion board.

    • Y stepper (rear) is wired to Drive 6 on the expansion board. This is the last free driver on the expansion board.

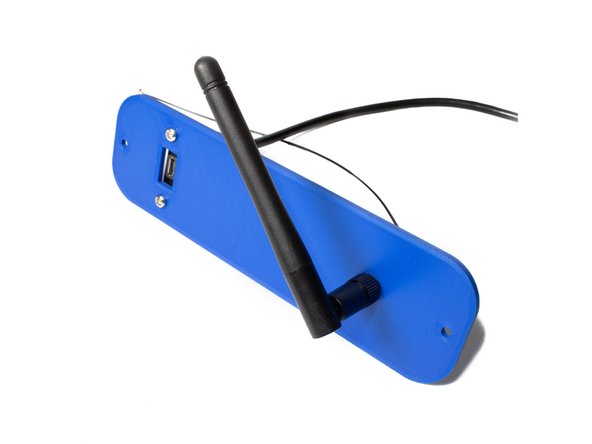

  12. Using (2) M3 x 10 socket head screws, washers and nuts, attach the antenna and USB extender to the outside of the printer panels.
    • Using (2) M3 x 10 socket head screws, washers and nuts, attach the antenna and USB extender to the outside of the printer panels.

    • Plug the USB extension and WiFi pigtails into the Duet.

    • https://duet3d.dozuki.com/Wiki/Getting_S...
