Introduction

It's assumed that you're building a kit from Filastruder, and you've completed all previous sections. At the end of this section you should have your Z axis attached to your frame assembly.

    • Newer Filastruder kits use Socket Cap Head Screws, use them in place of all button head screws in this section.

  1. Find the Z brackets in the parts and align each as follows.
    • Find the Z brackets in the parts and align each as follows.

    • Note the orientation of each bracket. It is CRITICAL that the brackets all face the correct way.

    • On the left, the long horizontal ends of the brackets point towards each other. The vertical ends of the brackets face out towards the front and back of the frame

    • On the right the vertical ends of the brackets face the front of the frame.

    • Loosely install each Z bracket using (3) M3 Nylock Nuts. Leave them loose enough you can easily move them, there should be about 60mm between them, and the front one about 110mm from the front of the frame, though you can adjust later.

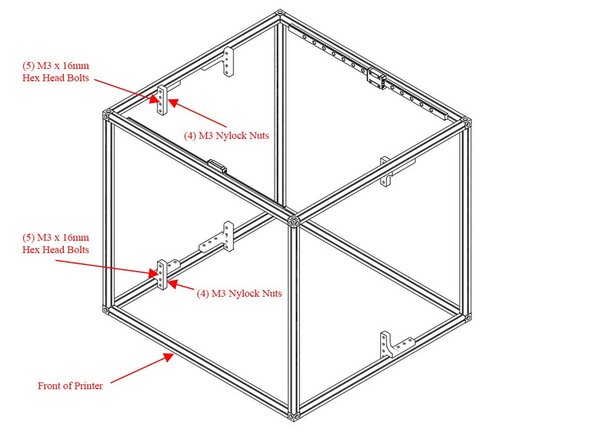

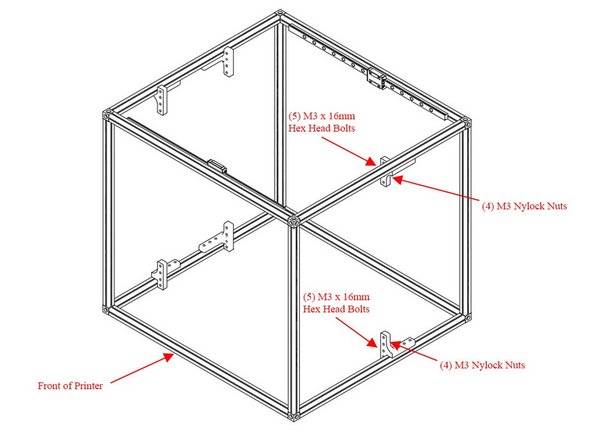

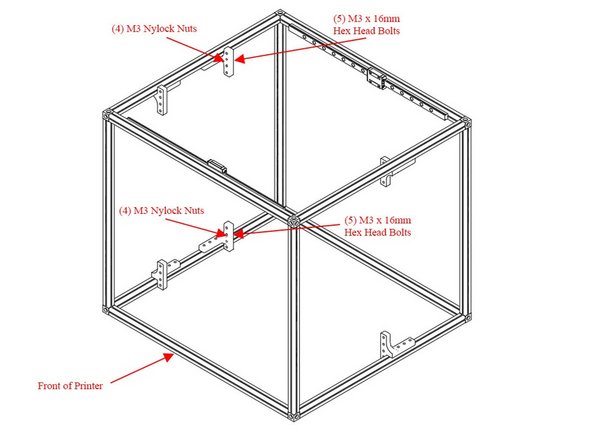

  2. Put a M3 x 16mm hex head bolt through each Z Bracket and attach it loosely with an M3 nylock nut.  Only thread the nut on loosely.  Each bracket gets (4) M3 x 16mm hex head bolts with (4) M3 nylock nuts. Repeat this process for all (6) Z brackets. Repeat this process for all (6) Z brackets.
    • Put a M3 x 16mm hex head bolt through each Z Bracket and attach it loosely with an M3 nylock nut. Only thread the nut on loosely. Each bracket gets (4) M3 x 16mm hex head bolts with (4) M3 nylock nuts.

    • Repeat this process for all (6) Z brackets.

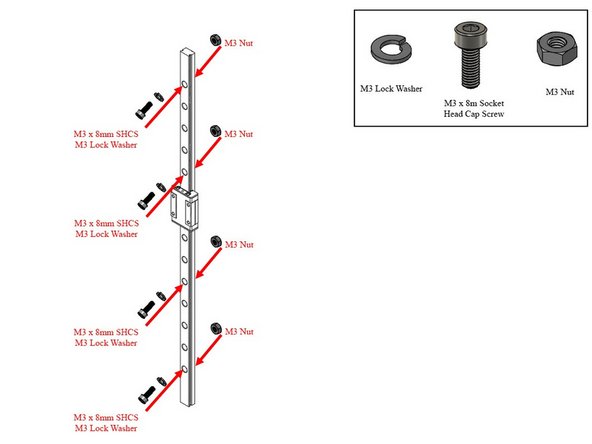

  3. Prep the Z axis MGN12 linear rails in the same fashion as the X axis rails.  There are additional hex head bolts in the ZLT supplement bag.  These can be merged in with the rest of your hardware.
    • Prep the Z axis MGN12 linear rails in the same fashion as the X axis rails. There are additional hex head bolts in the ZLT supplement bag. These can be merged in with the rest of your hardware.

    • Select 4 evenly spaced holes in the rail. Place a lock washer on (1) M3 x 8mm Socket Head Cap Screw, and place it into the rail. Loosely thread on (1) M3 nut to the bolt.

    • For the ZLT you should use (8) bolts spaced evenly, instead of (4) per rail. Extra 8mm bolts are located in the ZLT supplemental hardware bag.

    • Repeat for all (3) Z linear rails.

    • It is highly recommended to use a bit of masking tape to keep the carriage from sliding off of the linear rail.

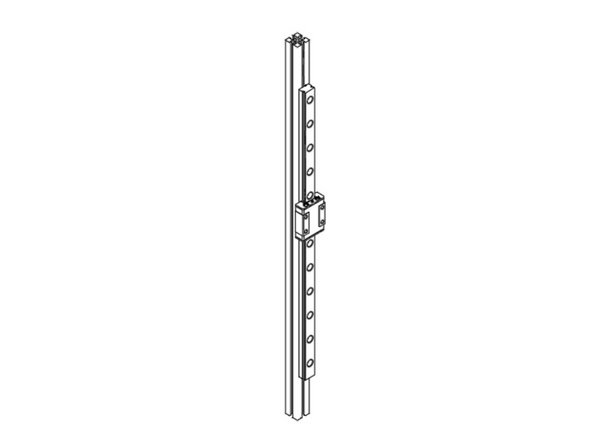

  4. Slide the linear rails onto the (3) 445mm Z extrusions, and snug up the bolts (do not overtighten them.
    • Slide the linear rails onto the (3) 445mm Z extrusions, and snug up the bolts (do not overtighten them.

    • The rail should sit ~20mm up from the bottom of the extrusion.

    • It is highly recommended to use a bit of masking tape to keep the carriage from sliding off of the linear rail.

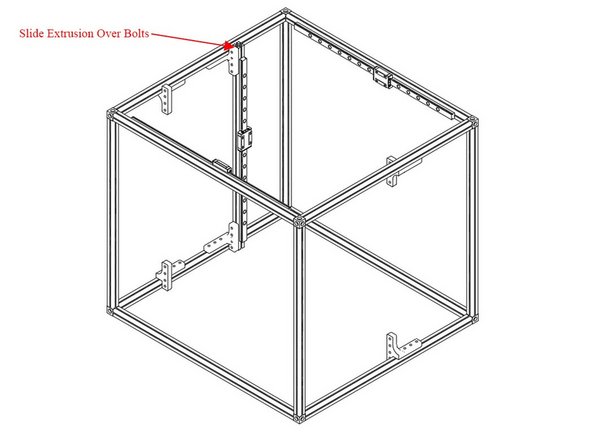

  5. Take your Z extrusion with a linear rail attached, and slide it down onto the hex head bolts you added earlier on the Z brackets. The extrusion should attach to all 4 bolts on both the top & bottom Z brackets.
    • Take your Z extrusion with a linear rail attached, and slide it down onto the hex head bolts you added earlier on the Z brackets.

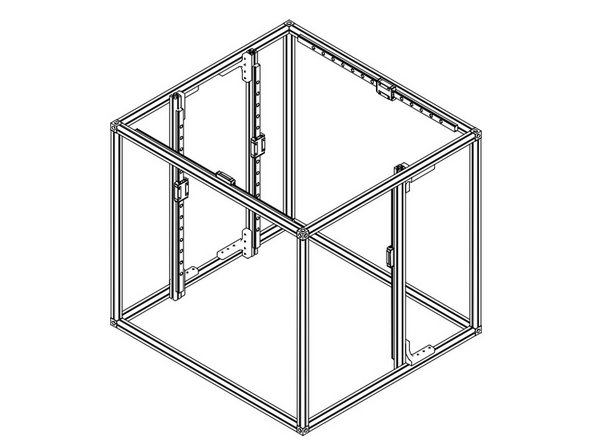

    • The extrusion should attach to all 4 bolts on both the top & bottom Z brackets.

    • Tighten down the nylock nuts to hold the Z extrusions in place.

    • Repeat for all (3) Z extrusions.
